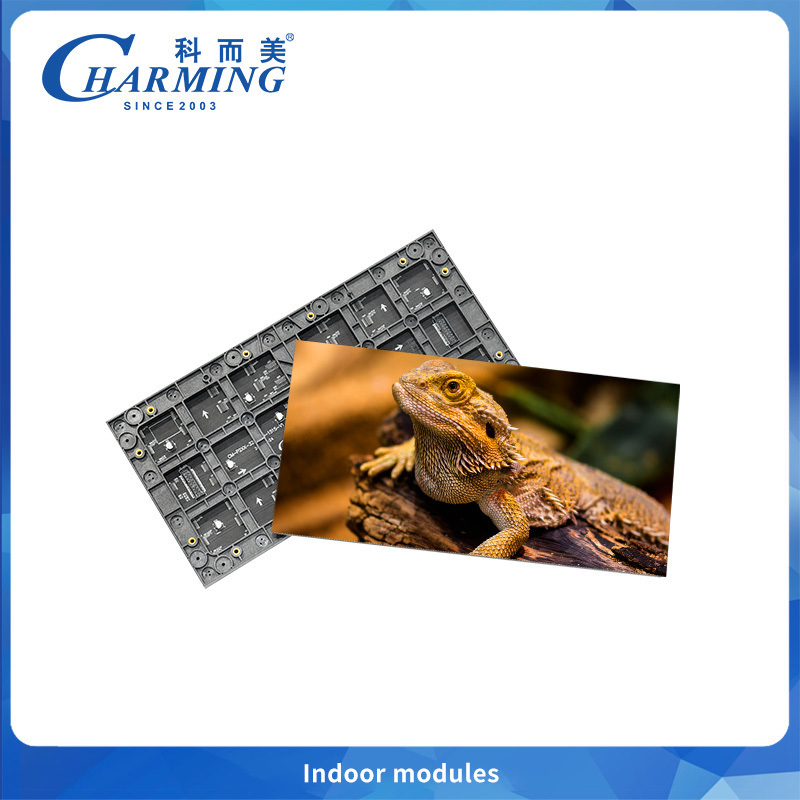

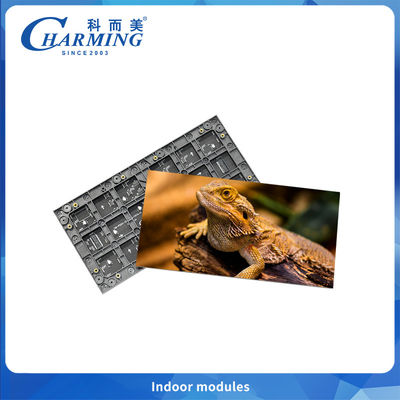

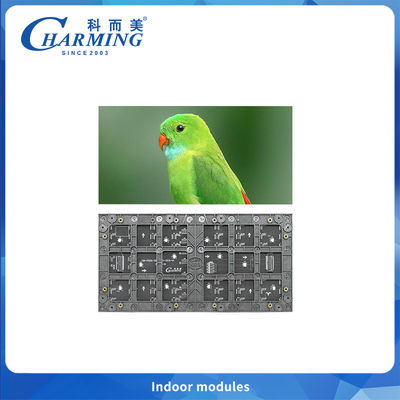

P2 320*160mm LED Video Wall Panel Small Pixel Pitch Indoor Advertising Screen LED Module
Szczegóły Produktu:
| Miejsce pochodzenia: | ŁAŃCUCH; |
| Nazwa handlowa: | Charmingled; |
| Orzecznictwo: | CE, ROHS, LVD, EMC, CB, BIS, UL; |
| Numer modelu: | P1.86 P2 P2.22 P2.5; |
Zapłata:
| Minimalne zamówienie: | 10 szt |
|---|---|
| Cena: | negocjowalne |
| Szczegóły pakowania: | Carton Case, drewniana obudowa, obudowa lotu |
| Czas dostawy: | 30 dni roboczych po płatności |
| Zasady płatności: | L/C, T/T, Western Union, PayPal, Cash |
| Możliwość Supply: | 100000 sztuk tygodniowo |
|
Szczegóły informacji |
|||
| Numer typu: | SP2.5 SP3 SP4 | Kąt widzenia: | 120 ° |
|---|---|---|---|
| Standard LED: | SMD1515SMD2020 | Praca, temperatura: | -20~50°C” |
| Praca. Wilgotność: | 10% ~ 90% wilgotności względnej” | Praca.Napięcie: | Napięcie stałe 5 V. |
| Podkreślić: | small pixel pitch LED video wall,320x160mm LED advertising screen,indoor LED display module |
||
opis produktu
P2 320*160mm LED Video Wall Panel Small Pixel Pitch Indoor Advertising Screen LED Module
High Definition Small Pitch LED for Large Screen Advertising & Conference Applications
With a steadfast commitment to advancing global entertainment lighting and LED technology, Charming Co., Ltd. has established itself as an industry pioneer.
Our legacy began in 2003 when we launched the world's first LED display for entertainment applications, setting a new standard that we continue to evolve. We have since grown into one of China's most trusted brands in this field.
Our technical excellence is validated by nearly 100 patents and key international certifications such as ISO9001, CE, CCC, CB, ROHS, and SASO.
Embracing our "Charming Achieve Beauty" philosophy, we maintain a 10,000+ sqm manufacturing plant equipped with a fully automated production line. Throughout our 22-year history, we have served customers across over 150 countries and regions with reliable products and comprehensive support.
Technical Specifications
| Parameters | SP2 | SP2.22 | SP2.5 | SP3 | SP4 (256x128) | SP4 (256x256) |
|---|---|---|---|---|---|---|
| Type Number | SP2 | SP2.22' | SP2.5' | SP3' | SP4' | SP4 |
| Dimension (MM) | 320x160 | 320x160' | 320x160' | 192x192 | 256x128' | 256x256 |
| Pixel Pitch (MM) | 2' | 2.22' | 2.5' | 3' | 4' | 4' |
| LED Standard | SMD1515 | SMD2020' | SMD2020' | SMD2020 | SMD2020' | SMD2020' |
| Scan Mode | 1/40 Scan' | 1/36 Scan' | 1/32 Scan' | 1/32 Scan | 1/32 Scan' | 1/32 Scan' |
| Pixel Density (Dot/m²) | 250000' | 202500' | 160000' | 111111' | 62500' | 62500' |
| Module Max.Power (W) | 22' | 20' | 24' | 10' | 5 | 10 |
| Best Viewing Distance (M) | ≥2.5' | ≥2.5' | ≥2.5' | ≥3' | ≥4 | ≥4 |
| Refresh Rate (Hz) | 7680' | 3840/1920' | 3840/1920' | 3840/1920' | 3840/1920 | 3840/1920 |
| Brightness (CD/m²) | 800' | ≥700' | ≥800' | ≥600' | ≥400' | ≥400' |
| Viewing Angle | 120°' | 120°' | 120°' | 120°' | 120°' | 120°' |
| Protection Level | IP42' | IP42' | IP42' | IP42' | IP42' | IP42' |
| Grey Level' | 14-16 bit' | 14-16 bit' | 14-16 bit' | 14-16 bit' | 14-16 bit' | 14-16 bit' |
| Working' Temperature | -20 ~ 50℃' | -20 ~ 50℃' | -20 ~ 50℃' | -20 ~ 50℃' | -20 ~ 50℃' | -20 ~ 50℃' |
| Working Humidity | 10% ~ 90%RH' | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH |
| Life Span' | ≥50000 Hours' | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours |
| Working Voltage | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V |
Warranty & Support
Comprehensive 2-Year Protection
- 2-Year Full Warranty: Free replacement or repair for any defective displays, modules, or parts
- Lifetime Maintenance: Only material costs apply after warranty period
- Free Technical Training: Includes hands-on operation & maintenance training
- Complete Documentation: Operation manuals, software, test reports, CAD drawings
After-Sales Service Package
- On-site technical support (available upon request)
- Remote troubleshooting assistance
- Regular system maintenance recommendations
- Software/firmware updates
- Spare parts supply chain support
Frequently Asked Questions
Can I order samples for testing?
Yes, we welcome sample orders to test and check quality for both LED modules and complete screens.
What is the delivery time?
LED modules: 1-5 days. Complete screens (under 100m²): within 15 working days.
What warranty do you offer?
We provide a 2-year comprehensive warranty for all products.
How is the after-sales service?
Our professional team provides 24-hour online support with dedicated hotlines for complaints and feedback.
Can we customize display sizes?
Display sizes are determined by module and cabinet dimensions for optimal performance.
How to install the LED display?
We provide detailed CAD drawings or remote TeamViewer support for installation.
