IP65 Protection Die Cast Aluminum LED Screen Energy Saving Outdoor LED Video Wall
Szczegóły Produktu:
| Miejsce pochodzenia: | Chiny |
| Nazwa handlowa: | Charming |
| Orzecznictwo: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Numer modelu: | P6.66 |
Zapłata:
| Minimalne zamówienie: | 2 szt |
|---|---|
| Cena: | negocjowalne |
| Szczegóły pakowania: | Pudełko kartonowe, pudełko drewniane, walizka transportowa |
| Czas dostawy: | 30 dni roboczych po dokonaniu płatności |
| Zasady płatności: | L/C, T/T, Western Union, PayPal, Cash |
| Możliwość Supply: | 500 sztuk tygodniowo |
|
Szczegóły informacji |
opis produktu

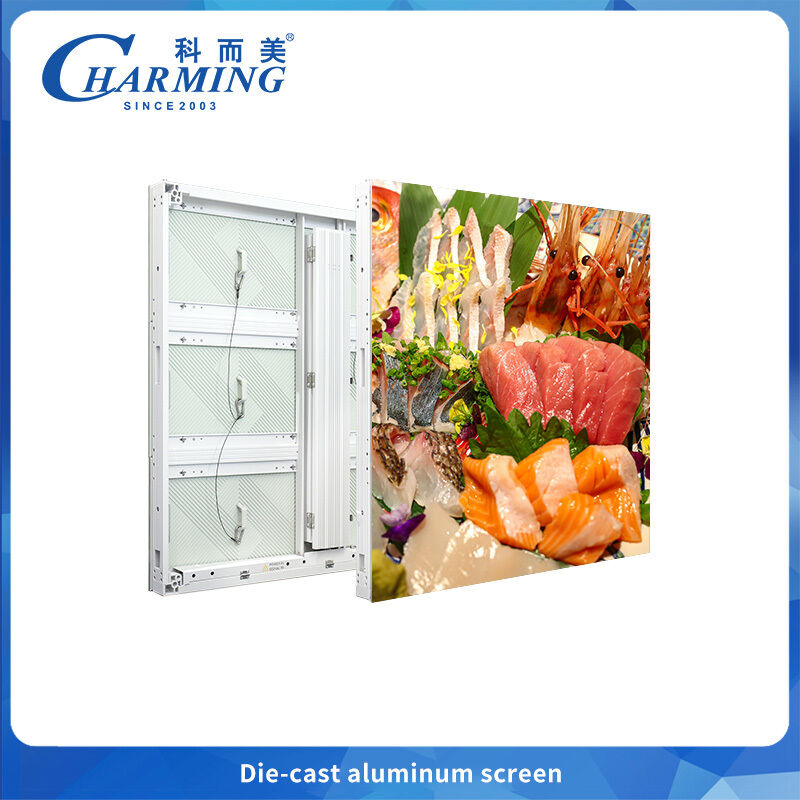

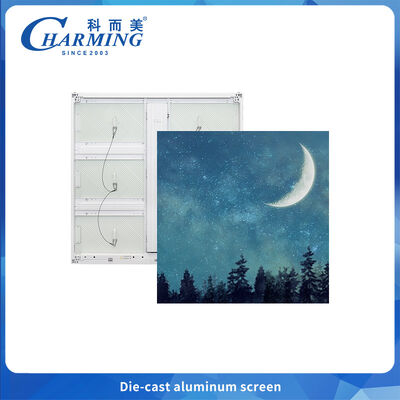

IP65 Protection Outdoor Die Cast Aluminum LED Screen
Commercial plaza naked installation free of air conditioning energy saving choice
Product Features
- High Protection & Flexible Splicing
- Lightweight Design & Full Maintenance
- High Performance & Energy Saving
- High Stability & Security
Product Specifications
| Parameter | Specification |
|---|---|
| Cabinet Size | 960*960mm |
| Pixel Pitch | 6.66mm |
| Pixel Density | 22500 dots/m² |
| LED Size | SMD2727 |
| Scan Type | 1/2 Scan |
| Gray Scale | 14-16 bit |
| Refresh Rate | 1920/7680Hz |
| Screen Brightness | ≥6500 CD/m² |
| Optimal Viewing Distance | ≥8M |
| Screen Resolution | 74*28 |
| Module Size | 480*320mm |
| Viewing Angle | 120° |
| Cabinet Max Power | 900W |
| Cabinet Weight | 25kg |
| IP Grade | IP65 |
| Operating Temperature | -20~+60℃ |
| Operating Humidity | 10%~90%RH |
Installation Details
- Cut the box to required hole size and shape, align and fix the box with quick locks
- Distinguish power lines and signal lines, insert them into corresponding positions in the cabinet
- Connect main signal line and main power line to computer and controller, debug the screen for normal use
